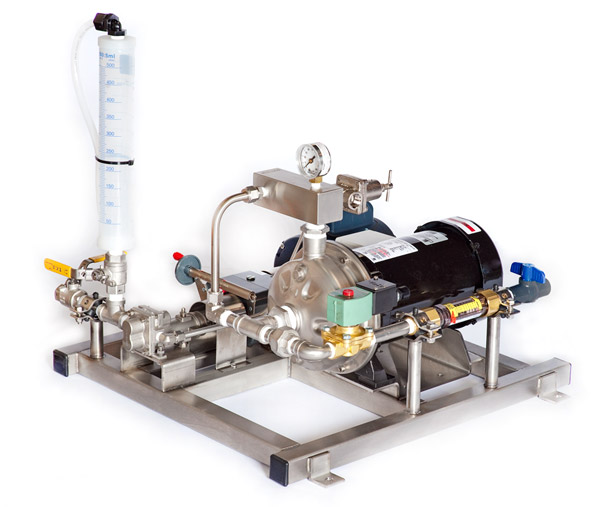

AnCAT G (Gear) Series liquid polymer systems employ a 316 stainless steel rotary-gear-type metering pump to inject the neat liquid polymer into the four stage, hydraulic mixing circuit. G-Series AnCATs can process up to 600 GPD of Mannich/AMPAM or PAM solution polymer and up to 300 GPD of liquid polyacrylamide in the emulsion or dispersion form. Polymer solution flowrates to 8.0 GPM (480 GPD) at 0.2 to 2.0%, volume on volume, polymer solution concentrations are standard while solution flowrates to 16 GPM (960 GPH) are typical for SD (Secondary Dilutiion) versions.
G-Series AnCATs, unless otherwise specified, are supplied with stainless steel base, supports, brackets and piping. Polymer-side wetted parts include carbon steel, stainless steel, high-density polyethylene (HDPE), polypropylene and Teflon. Water-side wetted parts include stainless steel, cast iron, brass and polysulfone. Other materials and custom designs are available upon request.
G-Series Capacities / Flow Specifications
| Model Number |
Liquid Plymer (GPD) | Primary Solution (GPM) | Secondary Solution (GPM) | Total Solution (GPM) | Solution Strength (% Conc.) |
|---|---|---|---|---|---|
| 054GS-100 (SD) | 100 | 4.0 | (4.0) | 4.0(8.0) | 0.2 to 2.0 |
| 054GS-300 (SD) | 300 | 4.0 | (4.0) | 4.0(8.0) | 0.2 to 2.0 |
| 054GS-600 (SD) | 600 | 4.0 | (4.0) | 4.0(8.0) | 0.2 to 2.0 |
| 058GS-100 (SD) | 100 | 8.0 | (8.0) | 8.0(16.0) | 0.2 to 2.0 |
| 058GS-300 (SD) | 300 | 8.0 | (8.0) | 8.0(16.0) | 0.2 to 2.0 |
| 058GS-600 (SD) | 600 | 8.0 | (8.0) | 8.0(16.0) | 0.2 to 2.0 |
Note: Effective (pumping) viscosities to 25,000 cps or apparent (bulk) viscosities of 50,000 to 100,000 cps. For special liquid polymers with unusual rheologies, ask about our PC (Progressive Cavity) Series of AnCAT systems.
UTILITIES:
Electrical: 115 VAC, 1 Phase, 60 Hz, 20 Amps, standard.
Water: 40 to 100 psi, clean source recommended; Max. discharge pressure 100 psi
