Liquid Systems

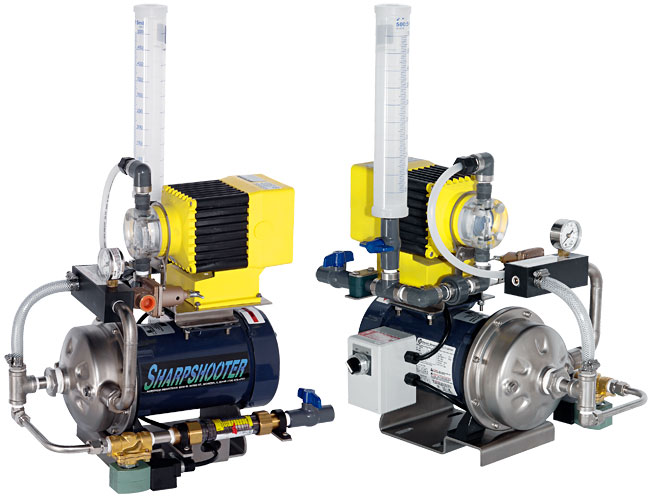

Sharpshooter
Sharpshooter liquid polymer systems are the smallest capacity AnCAT® Series and are frequently found in isolated, stand-alone applications. The Sharpshooter is handily portable and can be installed practically anywhere without special tools or complicated instructions. The Sharpshooter is available in a variety of capacities. You'll find that the Sharpshooter is accurate and reliable, delivering responsible results each and every time.
Sharpshooter Capacities / Flow Specifications
| Model Number | Polymer Solution (GPM) | Liquid Polymer (GPD)* | Polymer Solution (GPH) | Solution Strength (% Conc.) |
|---|---|---|---|---|
| 424 | 4.0 | 24 | 240 | 0.2 to 2.0 |
| 448 | 4.0 | 48 | 240 | 0.2 to 2.0 |
| 814 | 8.0 | 14 | 480 | 0.2 to 2.0 |
| 824 | 8.0 | 24 | 480 | 0.2 to 2.0 |
| 848 | 8.0 | 48 | 480 | 0.2 to 2.0 |
| 8108 | 8.0 | 108 | 480 | 0.2 to 2.0 |
*For polymer viscosities higher than 3000 cps, contact NORCHEM
UTILITIES:
Electrical: 120 VAC, 1 Phase, 60Hz/20Amp
Water: 40 to 100 psi, clean source; Max. discharge pressure 100 psi
Shipping Weight: 70 pounds
For capacities other than shown, contact NORCHEM.
